Select LED:

Unit: Metric Imperial

SEN CV 055 CHROMAX RGBW

24V DC

55W/m

IP44 / IP67

50,000hrs

24V DC

16.76W/ft

IP44 / IP67

50,000hrs

New

Product Details

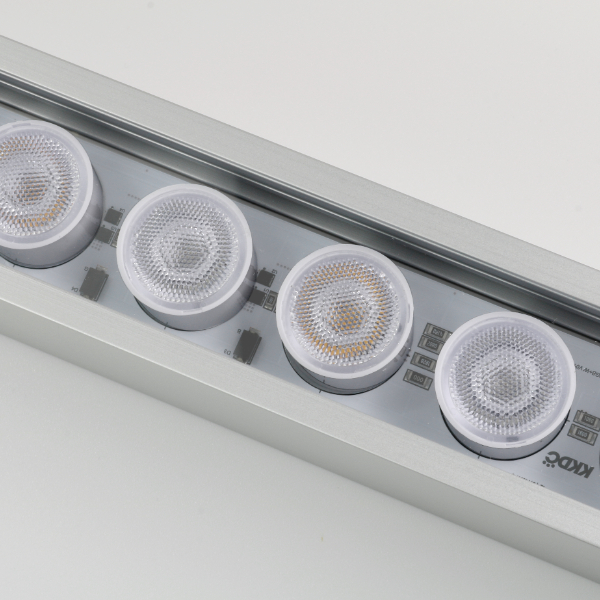

High power LED large aluminium exterior profile.
Clear cover with wide range of lens options available.
Surface mounting via lock clips or adjustable brackets.
IP44 or IP67 ratings available.
Output up to 3813 lumens per metre.
h-line CCT: 2700K, 3000K, 3500K, 4000K, 5000K.
RGB with integral DMX (2x power outputs available).
RGBW.
CHROMAX RGBW.

Unit: Metric Imperial

Product Data

Lumen/m Lumen/ft

Lumen/W

Lifetime/hrs

Clear cover 10°

CHROMAX RGBW

Red 170.3 Green 462.6
Blue 62.3 RGB 645.9
White 1919.8 RGB+W 2563

Red 52 Green 141
Blue 19 RGB 196.9
White 585.2 RGB+W 781.2

50,000

Clear cover 20°

CHROMAX RGBW

Red 187.1 Green 486.3
Blue 64.9 RGB 688.9
White 2057.8 RGB+W 2640

Red 57.1 Green 148.3
Blue 19.8 RGB 210
White 627.2 RGB+W 804.7

50,000

Clear cover 30°

CHROMAX RGBW

Red 189.7 Green 492.3
Blue 65.8 RGB 710.7
White 2135.6 RGB+W 2711

Red 57.9 Green 150.1
Blue 20.1 RGB 216.7
White 650.9 RGB+W 826.5

50,000

Clear cover + spread lens

CHROMAX RGBW

Red 175.9 Green 450.8
Blue 61.3 RGB 638.6
White 1963.3 RGB+W 2486

Red 53.7 Green 137.4
Blue 18.7 RGB 194.7
White 598.4 RGB+W 757.7

50,000

Clear cover no lens

CHROMAX RGBW

Red 155.6 Green 416.4
Blue 55 RGB 599.3
White 1755 RGB+W 2250

Red 47.5 Green 127
Blue 16.8 RGB 182.7
White 534.9 RGB+W 685.8

50,000

Clear cover + micro louvre

CHROMAX RGBW

-60% output

50,000

Accessories / Options

Downloads

KKBK-02 (SEN CV)

Fixed bracket
Allow 2 per metre
Steel finish
L40/W39.2/H68.8mm

Fixed bracket
Allow 2 per 40"
Steel finish
L1.58/W1.54/H2.71"

KKBK-09 (SEN CV)

Mounting plate
Allow 2 per metre – factory fitted
Silver anodised aluminium finish
W39.2/H52.3mm

Mounting plate
Allow 2 per 40" – factory fitted
Silver anodised aluminium finish
W1.54/H2.06"

KKBK-16 (SEN CV)

Small adjustable bracket
Allow 2 per metre
Silver anodised aluminium finish
L46/W70/H79.1mm

Small adjustable bracket
Allow 2 per 40"
Silver anodised aluminium finish
L1.8/W2.76/H3.11"

KKBK-17 (SEN CV)

Large adjustable bracket
Allow 2 per metre
Silver anodised aluminium finish
L46/W70/H129.4mm

Large adjustable bracket
Allow 2 per 40"
Silver anodised aluminium finish
L1.8/W2.76/H5.09"

KKBK-23 (SEN CV)

Low adjustable bracket
Allow 2 per metre
Silver anodised aluminium finish
L34/W39/H58.1mm

Low adjustable bracket
Allow 2 per 40"
Silver anodised aluminium finish
L1.34/W1.54/H2.29"

KKCP-12 (SEN CV)

Lock clip
Allow 2 per metre
Stainless steel finish
L38/W40.5/H70mm

Lock clip
Allow 2 per 40"
Stainless steel finish
L1.5/W1.59/H2.76"

RC (SEN CV)

Not compatible with low profile bracket (KKBK-23) or mounting plate (KKBK-09)
H56.9mm

Not compatible with low profile bracket (KKBK-23) or mounting plate (KKBK-09)
H2.24"

SC (SEN CV)

Required for use of low adjustable bracket (KKBK-23)
W56.4mm

Required for use of low adjustable bracket (KKBK-23)
W2.22"
