FX

Accessories / Options    |    Downloads    |    Videos
FX Projects

Select LED:

Unit: Metric Imperial
07
7W/m2.13W/ft
≤671lm/m (96lmW)≤204lm/ft (96lmW)
Spottings-linek-line
14
14W/m4.27W/ft
≤1285lm/m (92lm/W)≤392lm/ft (92lm/W)
Spottings-linek-line
18
18W/m5.49W/ft
≤1806lm/m (90lm/W)≤551lm/ft (90lm/W)
Spottings-linek-line
RGB
15.6W/m4.75W/ft
Colour changeColour change
SpottingRGB
New
CHROMAX RGB
18W/m5.79W/ft
Colour changeColour change
SpottingCHROMAX RGB

FX CHROMAX RGB

InteriorExteriorSpottingCHROMAX RGBL70 B10>50000hCEClass IIILM79
24V DC
18W/m
IP20 / IP65
50,000hrs
24V DC
5.79W/ft
IP20 / IP65
50,000hrs
Homogenous
New
Product Details

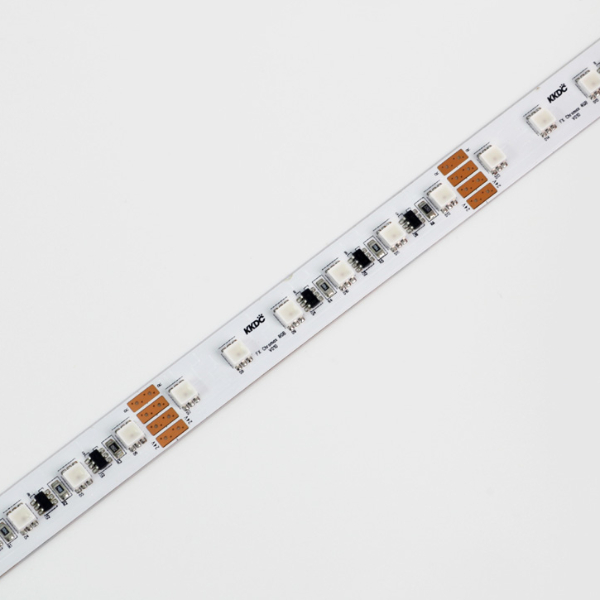

  • Flexible linear strip options of varying outputs for concealed lighting applications.
  • Silicone sheathed IP65 rated variant available.
  • 3M self adhesive tape fixing.
  • Requires no extra heat sinking.
  • Output up to 1806 lumen metre.
  • s-line / k-line CCT: 1900K, 2100K, 2300K, 2500K, 2700K, 3000K, 3500K, 4000K, 5000K.
  • RGB.
  • CHROMAX RGB.
Unit: Metric Imperial
Product Data
Lumen/m Lumen/ft
Lumen/W
Lifetime/hrs
No cover
CHROMAX RGB
Red 140 Green 544
Blue 45 White 687
Red 42.7 Green 165.9
Blue 13.7 White 396.3
Red 21.5 Green 94.4
Blue 6.9 White 37.8
50,000
IP65 Silicone sheath
CHROMAX RGB
Red 130 Green 507
Blue 44 White 607
Red 39.6 Green 154.6
Blue 13.4 White 185.1
Red 20.3 Green 89.1
Blue 6.7 White 34.7
50,000
